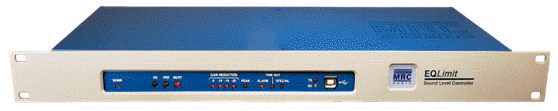

EQlimit Sound Pressure Level Controller limits the full audio
range in a global basis, or by 1/3 octave filters to compensate
audio in & out.
circuitry designed with professional characteristics with the
foresight that only the level will be limited, not the quality.
60 dB input range over limiting threshold.
Remembers the last gain attenuation, thus maintaining the right
level when music resumes from a blank even in tracks roll-over.
Global and steady Gain setup. Adjust a permanent gain for all
the chain, setting a max level even without dynamic control.
two microphones to control two different room points.
the microphone signal or audio line output as limit
control source, thus avoiding crowd noise influences on the output
remote level meter, dB calibrated for visual control by sound
programming on 21 different times and levels over the seven
days of the week.
program 10 Special Duty periods in which the unit allows
different limiting parameters.
Continuous checking for detecting any sound chain efficiency
and logs 3 types of alarms: Level (over max allowed level)
Mic (Microphone unplugged) or Efficiency (If mic position
is altered or damped).
utility AUX input mute and message priority from Fire
on non volatile memory all the activity events in monitored
premises with time and date stamp.
Non-volatile memory registers are downloadable to laptop as
report or graphics for further evaluation and printing.
Connectivity: front panel USB connection to PC and rear
panel RS232 DB-9 for GPRS/GSM and ETHERNET
socket. This allows remote checking of the unit including SPL
real time monitoring from our server
change in programming is made, the limiter records the user ID in
the non-volatile memory to identify user that has accessed the
Measurement microphone of 1/2" size, class2 as UNE61672
Pink Noise generator.
Certified by AT4Wireless. Complies with CE mark in Electrical
Security and Electromagnetic Compatibility Rules.
